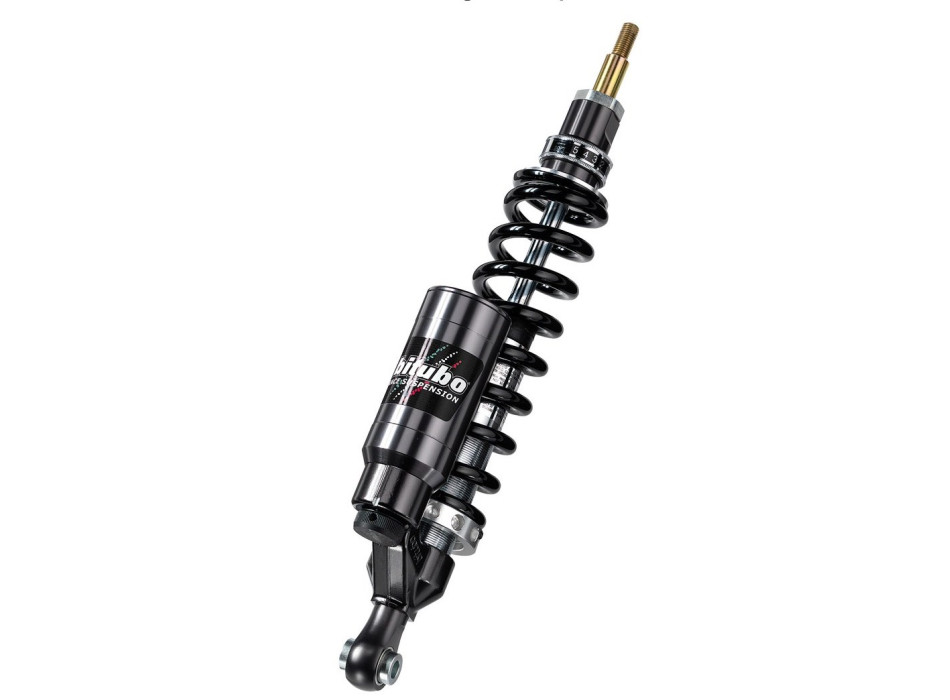

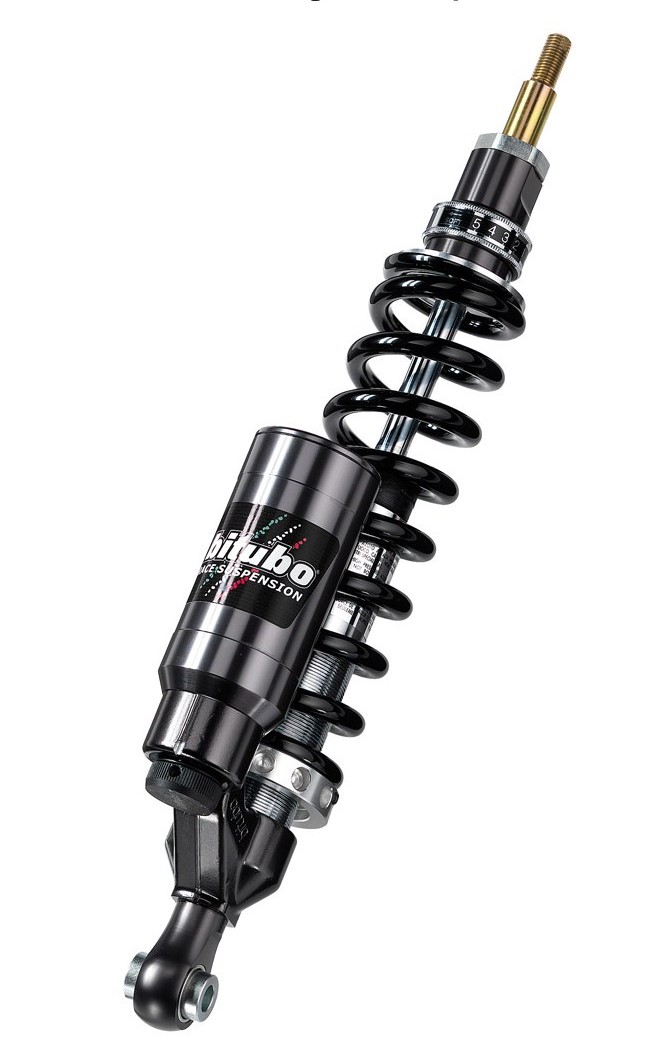

Monoshock adjustable: spring preload, rebound, compression, length, Black spring

  • Code: BW040WAT12
€ 700,50
LOGIN to purchase
This shock absorber replaces the original and improves the behaviour of this particular front end. It allows the vehicle to be used on the road and off-road. The numerous adjustments guarantee maximum performance in different conditions of use.

Code ‘11’ identifies the red coloured spring (for sportier models), while code ‘12’ specifies the black coloured spring (for more classic models).



TECHNICAL CHARACTERISTICS: Nitrogen pressurisation with integrated tank, with floating oil/gas separation piston in separate compensation chamber. Piston rod Ø12mm with anti-friction treatment and low-friction guide bushings. Upper and lower coupling head in aeronautical aluminium alloy manufactured with CNC precision machines.

ADJUSTMENTS

Compression 12 clicks
Rebound continuous
Spring preload continuous
Wheelbase  variable

INCLUDED IN THE BOX: Preload adjustment spanner, fitting instructions, suspension manual.

MODEL AVAILABLE FOR: BMW

Brands Displacement Model Year Type
BMW 1150 R 1150 ROCKSTER (NO ABS) 2002-2005 0308-0318
BMW 1150 R1150R (NO ABS) 2001-2006 0429 - 0439
BMW 850 R850R (NO ABS) 2003-2007 0428
Document Type Date File Size
Instructions 31.03.2025 BW040WAT12 Rev00.pdf 230,49 KB
Back
Recently viewed products

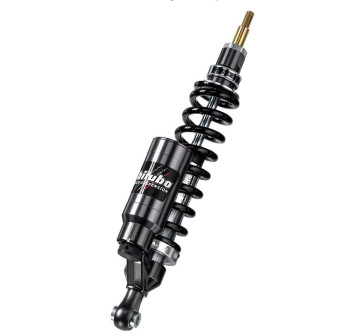

Monoshock adjustable: spring preload, rebound, compression, length, Black spring
Monoshock adjustable: spring preload, rebound, compression, length, Black spring
Code : BW040WAT12
€ 700,50
Monoshocks adjustable: spring preload, rebound, Red spring
Monoshocks adjustable: spring preload, rebound, Red spring
Code : C0017WZE01
€ 427,50

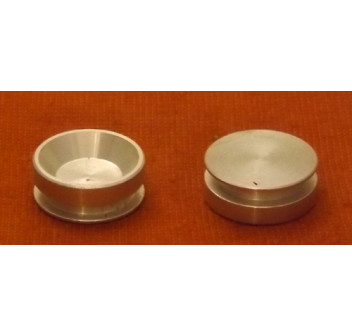

LOWERED FLOATING PISTON D.32
