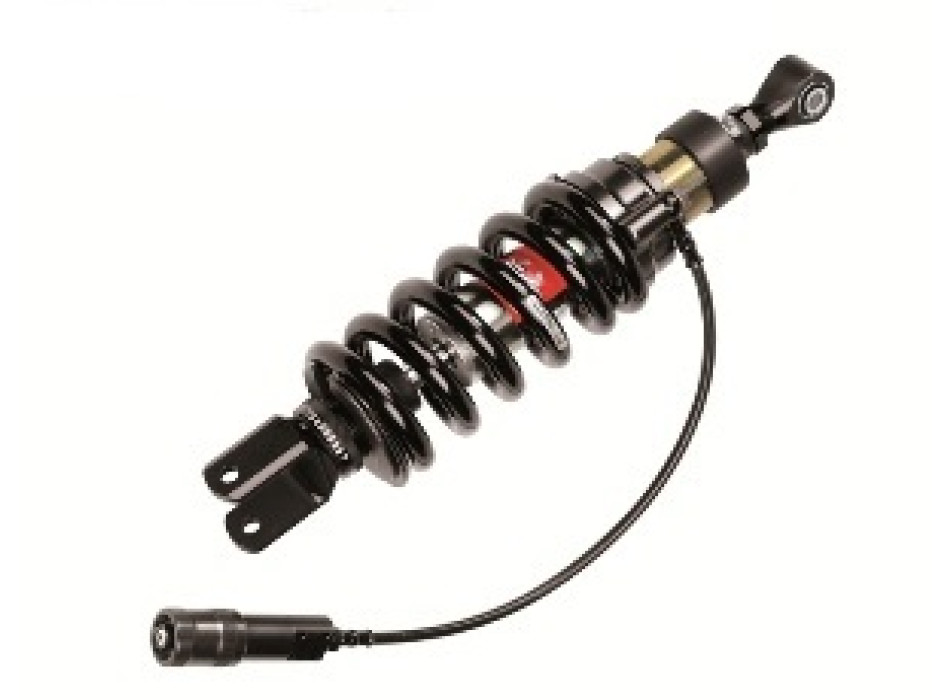

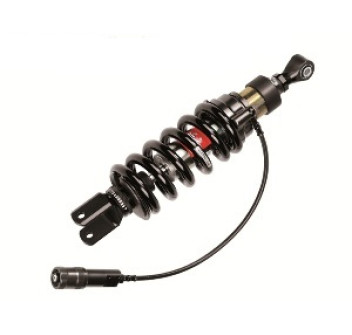

Monoshocks adjustable: hydraulic spring preload, rebound, lenght, Black spring

  • Code: BW016XZE32
€ 885,00
LOGIN to purchase
The third step of the series is enriched by the easy-to-use hydraulic spring preload whenever it is necessary to restore the optimal set-up as the load on board varies.
TECHNICAL FEATURES :
Pressurized gas shock absorber (Nitrogen) with floating oil/gas separator piston.
Shock absorber body in steel, Ø 14 mm steel stem with low friction surface treatment and Ergal heads machined from solid with CNC machines.

ADJUSTMENTS :
Extension 7 clicks
Hydraulic spring preload 12mm = 24 clicks
Wheelbase 8mm


INCLUDED IN THE PACKAGE : Specific assembly instructions for each model, Suspension Manual. AVAILABLE VERSIONS: XZE31 with red spring for sport bikes, XZE32 with black spring, for more "classic" bikes.

POSSIBLE ACCESSORIES : Three-lobed Ergal handwheel for preload knob

MODEL AVAILABLE FOR : Aprilia, BMW, Ducati, Honda, Kawasaki, KTM, Moto Guzzi, MV Augusta, Suzuki, Triumph, Yamaha
Brands Displacement Model Year Type
BMW 1100 R1100RS 1992-2001 0411
Document Type Date File Size
Instructions 31.03.2025 BW016XZE32_Rev00.pdf 460,29 KB
