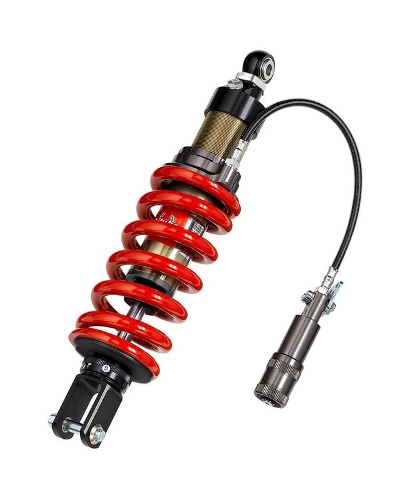

Monoshocks adjustable: hydraulic spring preload, rebound, lenght, Red spring

Code: MV007XZE31

€ 885,00

VAT excluded

The third step of the series is enriched by the easy-to-use hydraulic spring preload whenever it is necessary to restore the optimal set-up as the load on board varies.
TECHNICAL FEATURES :
Pressurized gas shock absorber (Nitrogen) with floating oil/gas separator piston.
Shock absorber body in steel, Ø 14 mm steel stem with low friction surface treatment and Ergal heads machined from solid with CNC machines.

ADJUSTMENTS :

Extension	7 clicks
Hydraulic spring preload	12mm = 24 clicks
Wheelbase	8mm

INCLUDED IN THE PACKAGE : Specific assembly instructions for each model, Suspension Manual. AVAILABLE VERSIONS: XZE31 with red spring for sport bikes, XZE32 with black spring, for more "classic" bikes.

POSSIBLE ACCESSORIES : Three-lobed Ergal handwheel for preload knob

MODEL AVAILABLE FOR : Aprilia, BMW, Ducati, Honda, Kawasaki, KTM, Moto Guzzi, MV Augusta, Suzuki, Triumph, Yamaha

The images are purely indicative and generic of the product model and not specific to the application.
