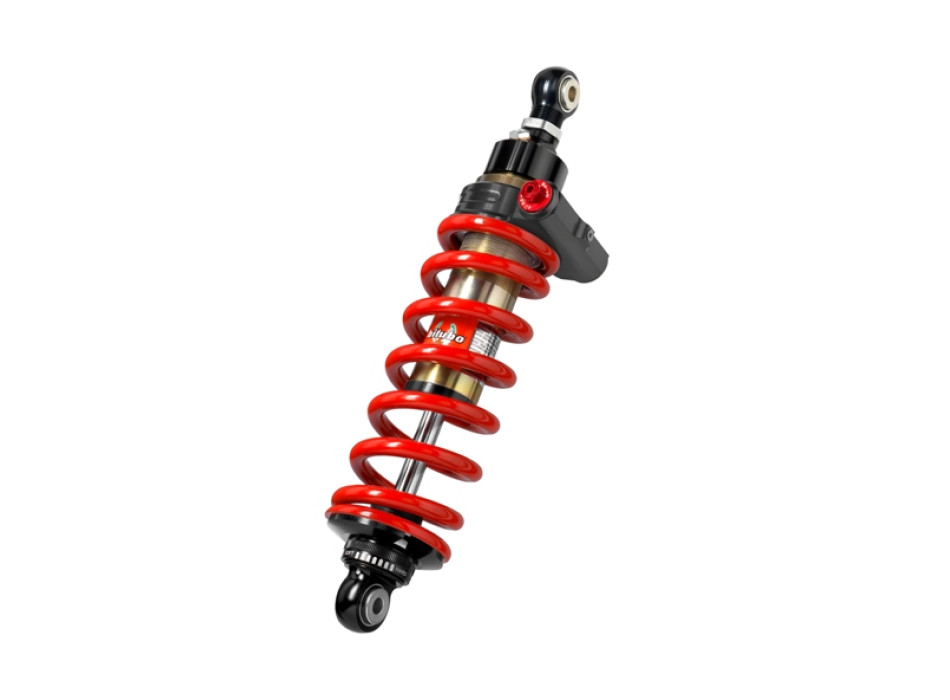

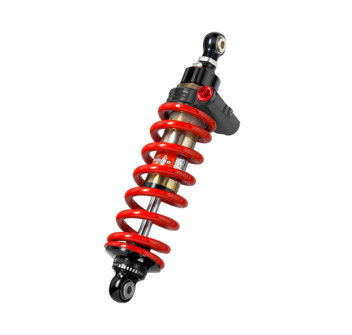

Monoshocks adjustable: hydraulic spring preload, rebound, length, Red spring

  • Code: KT004XZE31V2
€ 902,50
VAT excluded
LOGIN to purchase
This version of the XZE features a "compact" hydraulic spring preload, with no remote control knob.
Made for some motorcycles that allow its assembly - as space available in the under-seat area - as regards its housing and operation, which must be easy and convenient to use whenever it is necessary to restore the optimal set-up as the load on board varies.

TECHNICAL FEATURES:
Pressurized gas shock absorber (Nitrogen) with floating oil/gas separator piston. Shock absorber body in steel, Ø 14 mm steel rod with low friction surface treatment and Ergal heads machined from solid with CNC machines.

ADJUSTMENTS
Extension 7 clicks
Hydraulic spring preload 10mm
Wheelbase 10mm


MODEL AVAILABLE FOR : Aprilia, BMW, Honda, Kawasaki, KTM, Moto Guzzi, Suzuki
The images are purely indicative and generic of the product model and not specific to the application.
Brands Displacement Model Year Type
KTM 800 DUKE 790 2018-2022 KTM790DUKE
KTM 900 DUKE 890 L 2021-2022 KTM 790 DUKE L
Document Type Date File Size
Instructions 31.03.2025 KT004XZE31V2 - Rev00.pdf 569,86 KB
