Monoshocks adjustable: preload, rebound, compression, length 310 mm -4 +4

Code: A0043XXT11

€ 986,00

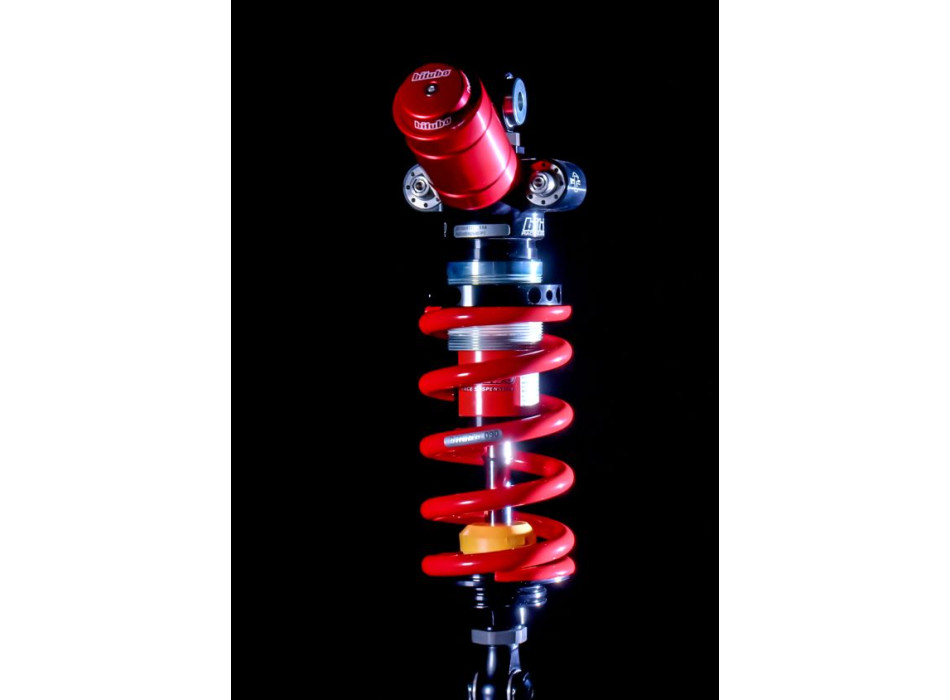

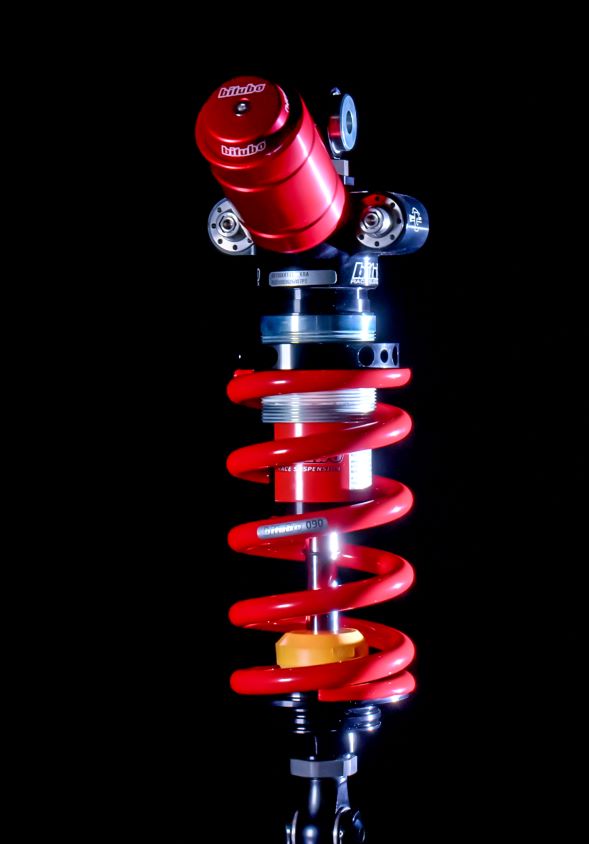

Direct descendant of the top-of-the-range XXZ shock absorber by Bitubo, the new XXT monoshock absorber incorporates the experience and information collected by our technicians working on circuits all over the world. The XXT is fully adjustable in compression, extension, spring preload and wheelbase. The wide range and convenient position of the adjustment registers allows you to reach the ideal set-up for every rider and riding style.
TECHNICAL FEATURES

The construction of lightweight components, an always important parameter in racing for the best response from the rider, together with the compensation with an external tank and the use of a Ø 30mm piston combined with a Ø 14mm stem, make the XXT a sensitive and reactive shock absorber on the circuit, guaranteeing grip, immediate control of the suspension oscillations and feeling with your vehicle.

ADJUSTMENTS

Compression	24 clicks
Extension	24 clicks
Spring preload	Continues
Wheelbase	up to 8 mm

MODEL AVAILABLE FOR : Aprilia, BMW, CF Moto, Ducati, Honda, Indian Motorcycle, Kawasaki, KTM, Moto Guzzi, MV Augusta, Suzuki, Triumph, Yamaha

Brands	Displacement	Model	Year	Type
APRILIA	1000	RSV4 FACT APRC-SE	2010-2013	RKB00 - RKB01
APRILIA	1000	RSV4 FACTORY APRC	2009-2014	OHLINS FORK
APRILIA	1000	RSV4 FACTORY APRC ABS	2013-2014	OHLINS FORK
APRILIA	1000	RSV4 R	2009-2010	SHOWA FORK
APRILIA	1000	RSV4 R APRC	2011-2012	SACHS FORK
APRILIA	1000	RSV4 R APRC ABS	2013-2015	SACHS FORK
APRILIA	1000	RSV4 RF	2015-2016	OHLINS FORK
APRILIA	1000	RSV4 RR / EURO 4 ABS	2015-2017	SACHS FORK

Document Type	Date	File	Size
Instructions	31.03.2025	A0043XX_11-31-31V2_Rev00.pdf	976,33 KB
Instructions	31.03.2025	A0043XXT11_SETTING_Rev00.pdf	1,49 MB
