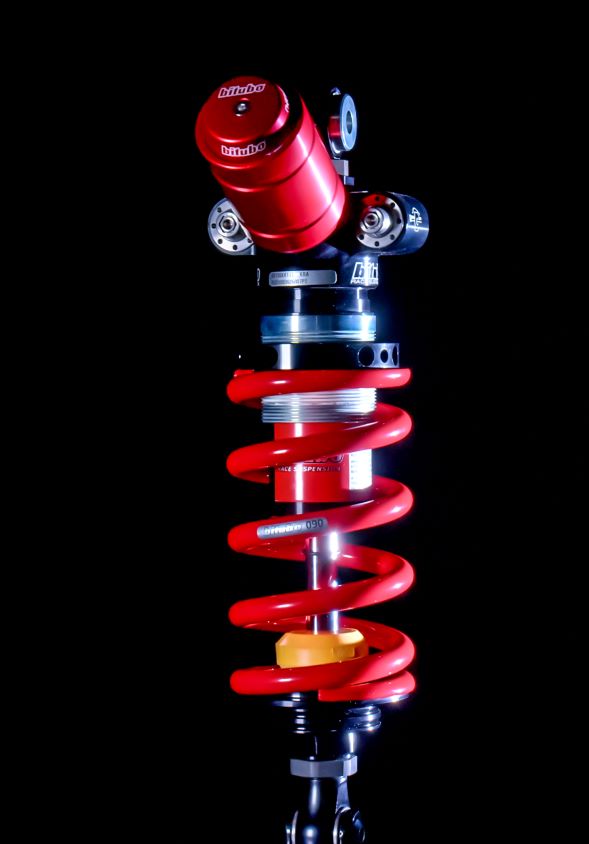

Monoshocks adjustable: preload, rebound, compression, length (STD-30mm), Lenght 351 mm -6 +2

Monoshocks adjustable: preload, rebound, compression, length (STD-30mm), Lenght 351 mm -6 +2

  • Code: G0032XXT61
€ 986,00
LOGIN to purchase
XXT is multi-adjustable in compression, rebound, spring preload and length. The wide range of adjustments and the convenient position of the adjustment registers allow you to achieve the ideal set-up for every rider and riding style.
TECHNICAL FEATURES
The fact that this product is made with lightweight components - always an important feature in racing for a better handling response to the needs of the riders - the separate compensation chamber and the use of a Ø30 mm piston together with the Ø14 mm stem, make the XXT a sensitive and reactive shock absorber on the track, thus ensuring perfect grip, immediate control of the suspension oscillations and an excellent feeling with the vehicle.

ADJUSTMENTS
Compression 24 click
Extension 24 click
Spring preload Continuous
Wheelbase up to 8 mm


MODEL AVAILABLE FOR : Aprilia, Indian Motorcycle, Moto Guzzi
Brands Displacement Model Year Type
MOTO GUZZI 850 V85 TT 2019-> KWA00
Document Type Date File Size
Instructions 31.03.2025 G0032XX_11-61-31V2-81V2_Rev00.pdf 505,33 KB
Instructions 31.03.2025 G0032XXT61_SETTING_Rev00.pdf 1,68 MB
