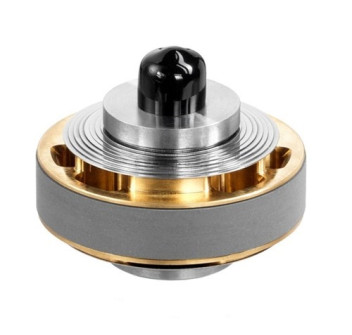

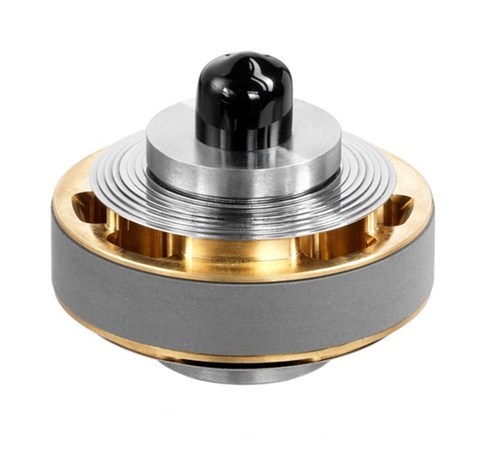

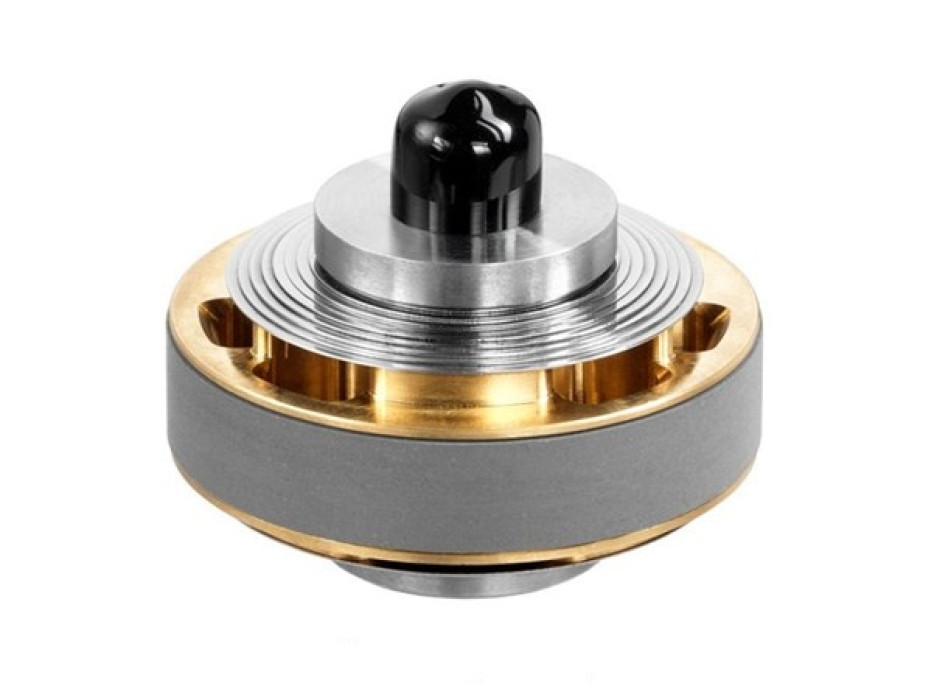

Rear Monoshock hydraulic kit: piston and shims

  • Code: KXSHOCK002
€ 212,50
LOGIN to purchase
Piston machined from solid with the aim of improving hydraulic flow, stabilizing hot performance, and reducing fluid turbulence.
Improves grip and traction, with greater sensitivity at low oscillation speeds to better copy the contours of the terrain.
TECHNICAL FEATURES
• Piston machined from solid
• Diameter 46 or 50 mm depending on the application
• Pyramidal lamellar packs with degressive or linear damping
• High-slip sealing clamps


INCLUDED IN THE PACKAGE: Dedicated assembly instructions for each application with indications from our R&D for the assembly diagram of the reed valve pack and adjustment depending on CROSS or ENDURO use.
Brands Displacement Model Year Type
HUSQVARNA 250 TC250 2012-2012 -
HUSQVARNA 250 TC250R 2013-2013 -
HUSQVARNA 500 TC499 2011-2013 -
HUSQVARNA 310 TE 310 2012-2012 -
HUSQVARNA 250 TE250 2012-2012 -
HUSQVARNA 310 TE310R 2013-2013 -
HUSQVARNA 500 TE449 2011-2013 -
HUSQVARNA 250 TXC250 2012-2012 -
HUSQVARNA 250 TXC250R 2013-2013 -
HUSQVARNA 310 TXC310 2012-2012 -
HUSQVARNA 310 TXC310R 2013-2013 -
HUSQVARNA 500 TXC449 2011-2011 -
HUSQVARNA 500 TXC511 2011-2012 -
KAWASAKI 450 KLX 450 R 2008-2013 LX450AAA
KAWASAKI 125 KX125 2002-2004 KX125-L4/M1/M2
KAWASAKI 125 KX125 2005-2007 KX125-M3/M6F/M7F
KAWASAKI 125 KX125 2008-2008 -
KAWASAKI 250 KX250 2003-2004 KX250 M1-M2
KAWASAKI 250 KX250 2005-2008 R1/R6F/R8F
KAWASAKI 250 KX250 L4 2002-2002 -
KAWASAKI 450 KX450F 2007-2008 KX450 D7F/D8F
SUZUKI 250 RM-Z 250 2004-2004 Z250K4
SUZUKI 250 RM-Z 250 2005-2006 RM-Z250K5/K6
YAMAHA 250 WR 250 F 2005-2005 CG22W-CG223
YAMAHA 250 WR 250 F 2006-2006 CG24W/CG24Y
YAMAHA 250 WR 250 F 2007-2011 5UM
YAMAHA 450 WR 450 F 2005-2005 5TJ8-J9-JA
YAMAHA 450 WR 450 F 2006-2006 5TJB-JC-JD
YAMAHA 450 WR 450 F 2007-2008 5TJG-JF-JE-JL
YAMAHA 450 WR 450 F 2009-2011 5TJP-R-S-U-W/1HB
YAMAHA 450 WR 450 F 2012-2014 DJ031
YAMAHA 125 YZ 125 2006-2012 1C3
YAMAHA 125 YZ 125 LC 2005-2005 1C 31-34
YAMAHA 250 YZ 250 LC 2005-2005 CG20C
YAMAHA 250 YZ 250 LC 2006-2008 CG23C
YAMAHA 250 YZ F 250 2006-2006 CG25C
YAMAHA 450 YZ F 450 2006-2009 CJ10C
Document Type Date File Size
Instructions 31.03.2025 ISTRUZIONI KXSHOCK002_Rev02.pdf 1,82 MB
