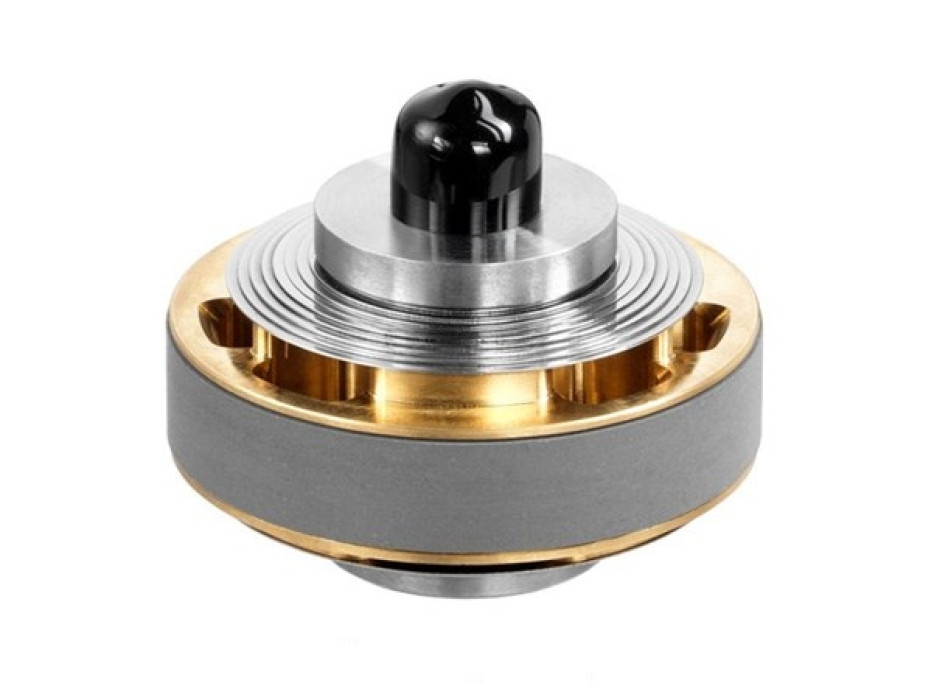

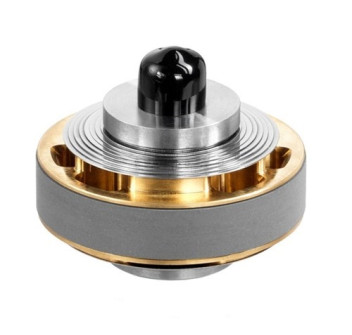

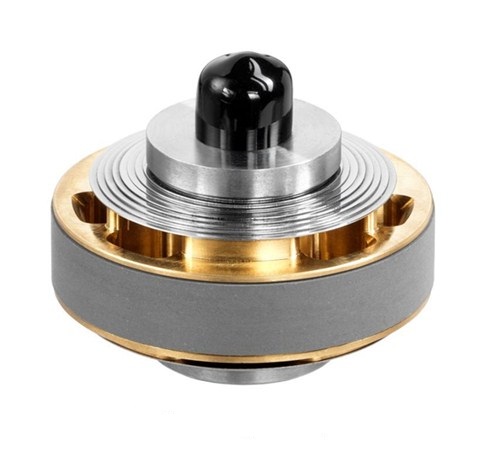

Rear Monoshock hydraulic kit: piston and shims

  • Code: KXSHOCK003
€ 200,50
LOGIN to purchase
Piston machined from solid with the aim of improving hydraulic flow, stabilizing hot performance, and reducing fluid turbulence.
Improves grip and traction, with greater sensitivity at low oscillation speeds to better copy the contours of the terrain.
TECHNICAL FEATURES
• Piston machined from solid
• Diameter 46 or 50 mm depending on the application
• Pyramidal lamellar packs with degressive or linear damping
• High-slip sealing clamps


INCLUDED IN THE PACKAGE: Dedicated assembly instructions for each application with indications from our R&D for the assembly diagram of the reed valve pack and adjustment depending on CROSS or ENDURO use.
Brands Displacement Model Year Type
KTM 125 125 SX 2012-2012 -
KTM 150 150 SX 2010-2012 -
KTM 250 250 SX 2012-2012 -
KTM 250 250 SX-F 2011-2012 -
KTM 250 250 XC 2012-2013 -
KTM 250 250 XC-F 2011-2013 -
KTM 300 300 XC 2012-2012 -
KTM 350 350 SX-F 2011-2013 -
KTM 350 350 XC-F 2011-2012 -
KTM 450 450 SX-F 2011-2012 -
Document Type Date File Size
Instructions 31.03.2025 ISTRUZIONI KXSHOCK003_Rev01.pdf 2,44 MB
