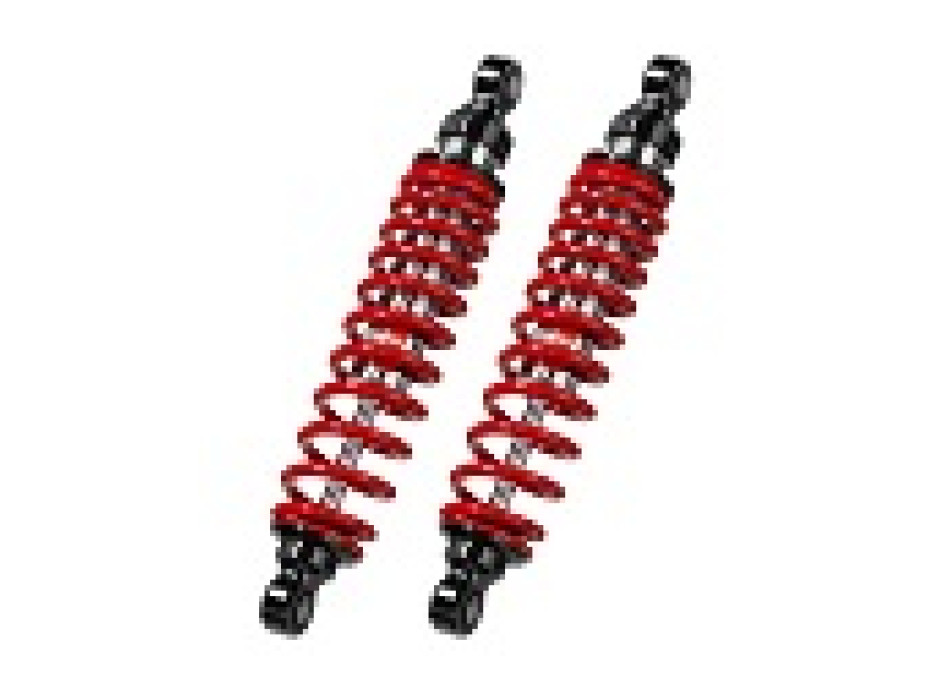

Twinshocks adjustable: spring preload, length 322mm, Red spring

  • Code: SC180WMB01V1
€ 412,00
VAT excluded
LOGIN to purchase
Dedicated to Harley Davidson, Modern Classic, and Custom bikes, they have specific calibrations for each model, and are available in various color versions: "01" with the red spring for sportier applications, "02V2" totally black for more classic applications, and "03" totally chromed.

These shock absorbers improve the comfort and control of the vehicle while driving thanks to the internal hydraulic system. Linear or progressive springs are chosen depending on the type of vehicle application.
The continuously adjustable spring preload with a threaded ring nut (rather than with predetermined clicks) allows for finer calibration of the rear suspension on motorcycles used with just the rider, or with a passenger, or with a full load.





TECHNICAL FEATURES

Single-chamber gas pressurized shock absorbers (Nitrogen), with floating piston oil/gas separator. Shock absorber body in high-strength alloy steel, heads in aluminum alloy machined from solid with CNC machining.

ADJUSTMENTS:

Spring preload continues


INCLUDED IN THE PACKAGE:
Application-specific assembly instructions, Suspension Manual, and wrenches for making adjustments.

POSSIBLE ACCESSORIES: For some "Old Style" motorcycle applications, upper and lower Spring Covers, or upper only, are available in black or chrome. Before purchasing, check that the space available for mounting the Spring Cover is sufficient to avoid any possible interference with the frame, or any bag attachments, chain guards, or other accessories on the motorcycle.

MODEL AVAILABLE FOR : Harley Davidson, Aprilia, BMW, BSA, Ducati, Honda, Indian Motorcycle, Kawasaki, Moto Guzzi, Moto Morini, Royal Enfield, Sachs, Suzuki, Triumph, Yamaha

The images are purely indicative and generic of the product model and not specific to the application.
Brands Displacement Model Year Type
PIAGGIO 125 VESPA GRANTURISMO 125 2003-2005 M311/312
PIAGGIO 125 VESPA GRANTURISMO 125 2006-2007 M301101
PIAGGIO 125 VESPA GRANTURISMO 125 E3 2006-2007 M31300
PIAGGIO 200 VESPA GRANTURISMO 200 2003-2007 M311/312 - M31200
PIAGGIO 250 VESPA GT 250 60 E3 2006-2007 M45102
PIAGGIO 125 VESPA GTS 125 4T IE SUPER 2009-2016 M45300
PIAGGIO 125 VESPA GTS 125 ABS E5 MY 2022 2022-> MD3202
PIAGGIO 125 VESPA GTS 125 E3 2007-2012 M31300
PIAGGIO 125 VESPA GTS 125 IE ABS E4 2016-2018 MA3A (MA31/32)
PIAGGIO 125 VESPA GTS 125 IE ABS E4 2019-> MA3700
PIAGGIO 125 VESPA GTS 125 IE ABS E4 4T SUP 2018-> MA3A (MA3700)
PIAGGIO 125 VESPA GTS 125 IE ABS E5 4T 2021-2021 MD3A (MD3200)
PIAGGIO 125 VESPA GTS 125 SUPER ABS 2014-2016 M31
PIAGGIO 150 VESPA GTS 150 4T E4 ABS 2016-2018 MA3B (MA3100/3200
PIAGGIO 150 VESPA GTS 150 IE SUPER 2014-2015 RP8M4
PIAGGIO 250 VESPA GTS 250 2005-2014 M45100
PIAGGIO 250 VESPA GTS 250 ABS 2005-2012 45101
PIAGGIO 300 VESPA GTS 300 ABS 2022 2022-> MDC3103 - MDC3104
PIAGGIO 300 VESPA GTS 300 HPE 4T/4V IE ABS 2019-2019 MA3C (M3600)
PIAGGIO 300 VESPA GTS 300 HPE 4T/4V IE E5 2020-2020 MD3C (MD31M)
PIAGGIO 300 VESPA GTS 300 IE TOURING 2011-2016 M45200
PIAGGIO 300 Vespa GTS 300 SUPER 2008-2016 M45200 (2 HOLES)
PIAGGIO 300 VESPA GTS 300 SUPER 2014-2016 M45 (SINGLE HOLE)
PIAGGIO 300 VESPA GTS 300 SUPER HPE-TECH 2018-2020 MA3C (M3600)
PIAGGIO 300 VESPA GTS 300 SUPERSPORT 2010-2013 M45200
PIAGGIO 300 VESPA GTS 300/GTS SUPER IE ABS 2016-2018 MA5200
PIAGGIO 310 VESPA GTS 310 E5+ 2024-> MD3G (MD3500)
PIAGGIO 125 VESPA GTS SUPER 125 IE ABS E5 2021-2021 MD3A (MD3200)
PIAGGIO 300 VESPA GTS300 HPE/SUPER 4T4V E5 2020-> MD3C (MD3100)
PIAGGIO 125 VESPA GTV 125 / NAVY E3 2006-2008 M31301
PIAGGIO 250 VESPA GTV 250 / NAVY E3 2006-2009 M45102
PIAGGIO 300 VESPA GTV 300 4T 4V IE 2010-2013 M4520
PIAGGIO 300 VESPA GTV 300 6 GIORNI IE E4 2017-2017 MA3C (MA3302)
PIAGGIO 300 VESPA GTV 300 6 GIORNI IE E4 2018-> MA3C (MA3602)
PIAGGIO 300 VESPA GTV 300 6 GIORNI IE E5 2021-2021 MD3C
PIAGGIO 300 VESPA GTV 300 VIA MONTENAPOLEO 2010-2010 M45201
Document Type Date File Size
Instructions 31.03.2025 SC180WMB01-02_IEF - REV03.pdf 399,01 KB
