TECHNIQUE AND PERFORMANCE
The SPECIAL line dedicated to the sportiest VESPA enthusiasts is the concrete answer to those looking for the best in technology and performance.
The calibration developed by BITUBO technicians is aimed at obtaining the best response, in terms of driving precision and performance consistency, to the driving demands of the most sporty enthusiasts.

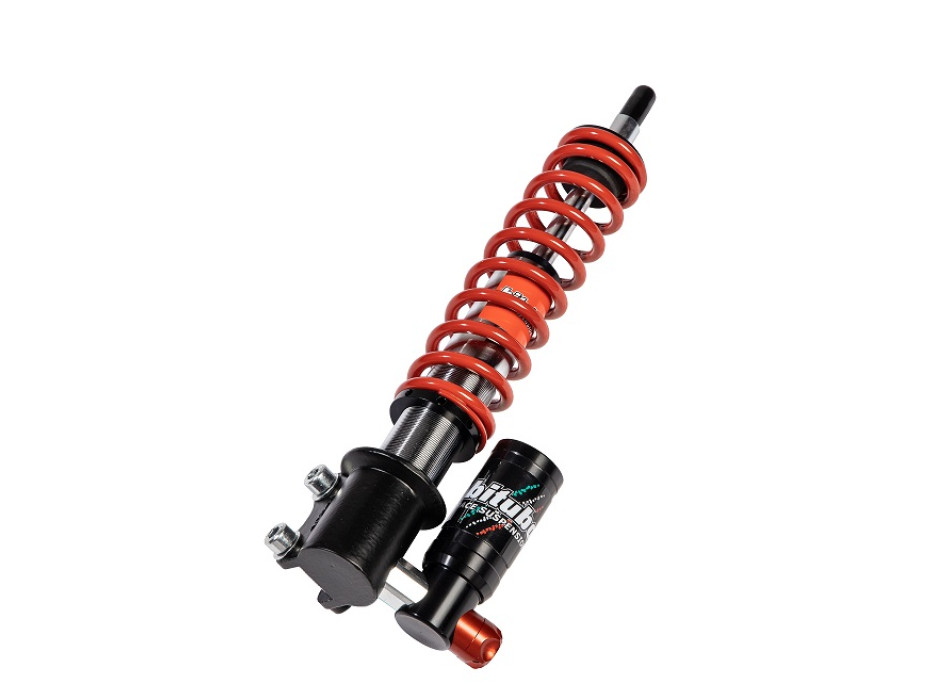

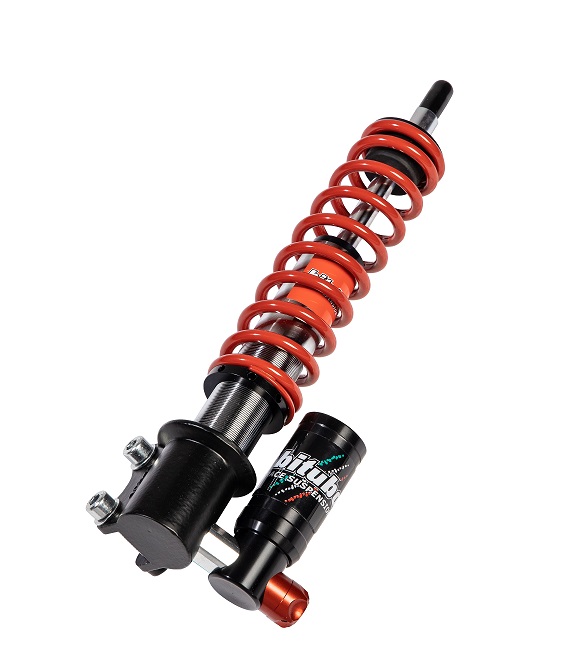

Thanks to the millimetric ring for the spring preload adjustment, and the compression brake adjustment, it is possible to further customize the suspension setting, according to your riding needs. GEV01 is the specific version for mounting on the front of some Vespa models, with a Ø 32 shock absorber body
TECHNICAL FEATURES
Gas pressurized shock absorbers (Nitrogen) with separate compensation tank, are the evolution of the experience gathered by BITUBO on the racetrack. The lower attachment foot and the compensation tank, made of aluminum alloy, have a special “satin black” paint, chosen not only for its modern and aggressive “look”, but for its characteristics of resistance to wear and oxidizing agents.
ADJUSTMENTS
| Spring preload | continuous |
| Compression | 24 clicks |
INCLUDED IN THE PACKAGE: Model-specific assembly instructions, spring preload adjustment tool
| Brands | Displacement | Model | Year | Type |
| PIAGGIO | 125 | VESPA GRANTURISMO 125 | 2003-2005 | M311/312 |
| PIAGGIO | 125 | VESPA GRANTURISMO 125 | 2006-2007 | M301101 |
| PIAGGIO | 125 | VESPA GRANTURISMO 125 E3 | 2006-2007 | M31300 |
| PIAGGIO | 200 | VESPA GRANTURISMO 200 | 2003-2007 | M311/312 - M31200 |
| PIAGGIO | 250 | VESPA GT 250 60 E3 | 2006-2007 | M45102 |
| PIAGGIO | 125 | VESPA GTS 125 4T IE SUPER | 2009-2016 | M45300 |
| PIAGGIO | 125 | VESPA GTS 125 E3 | 2007-2012 | M31300 |
| PIAGGIO | 125 | VESPA GTS 125 IE ABS E4 | 2016-2018 | MA3A (MA31/32) |
| PIAGGIO | 125 | VESPA GTS 125 IE ABS E4 | 2019-> | MA3700 |
| PIAGGIO | 125 | VESPA GTS 125 IE ABS E4 4T SUP | 2018-> | MA3A (MA3700) |
| PIAGGIO | 125 | VESPA GTS 125 IE ABS E5 4T | 2021-2021 | MD3A (MD3200) |
| PIAGGIO | 125 | VESPA GTS 125 SUPER ABS | 2014-2016 | M31 |
| PIAGGIO | 150 | VESPA GTS 150 4T E4 ABS | 2016-2018 | MA3B (MA3100/3200 |
| PIAGGIO | 150 | VESPA GTS 150 IE SUPER | 2014-2015 | RP8M4 |
| PIAGGIO | 250 | VESPA GTS 250 | 2005-2014 | M45100 |
| PIAGGIO | 250 | VESPA GTS 250 ABS | 2005-2012 | 45101 |
| PIAGGIO | 300 | VESPA GTS 300 HPE 4T/4V IE ABS | 2019-2019 | MA3C (M3600) |
| PIAGGIO | 300 | VESPA GTS 300 HPE 4T/4V IE E5 | 2020-2020 | MD3C (MD31M) |
| PIAGGIO | 300 | VESPA GTS 300 IE TOURING | 2011-2016 | M45200 |
| PIAGGIO | 300 | Vespa GTS 300 SUPER | 2008-2016 | M45200 (2 HOLES) |
| PIAGGIO | 300 | VESPA GTS 300 SUPER HPE-TECH | 2018-2020 | MA3C (M3600) |
| PIAGGIO | 300 | VESPA GTS 300 SUPERSPORT | 2010-2013 | M45200 |
| PIAGGIO | 300 | VESPA GTS 300/GTS SUPER IE ABS | 2016-2018 | MA5200 |
| PIAGGIO | 125 | VESPA GTS SUPER 125 IE ABS E5 | 2021-2021 | MD3A (MD3200) |
| PIAGGIO | 300 | VESPA GTS300 HPE/SUPER 4T4V E5 | 2020-> | MD3C (MD3100) |
| PIAGGIO | 125 | VESPA GTV 125 / NAVY E3 | 2006-2008 | M31301 |
| PIAGGIO | 250 | VESPA GTV 250 / NAVY E3 | 2006-2009 | M45102 |
| PIAGGIO | 300 | VESPA GTV 300 4T 4V IE | 2010-2013 | M4520 |
| PIAGGIO | 300 | VESPA GTV 300 6 GIORNI IE E4 | 2017-2017 | MA3C (MA3302) |
| PIAGGIO | 300 | VESPA GTV 300 6 GIORNI IE E4 | 2018-> | MA3C (MA3602) |
| PIAGGIO | 300 | VESPA GTV 300 6 GIORNI IE E5 | 2021-2021 | MD3C |
| PIAGGIO | 300 | VESPA GTV 300 VIA MONTENAPOLEO | 2010-2010 | M45201 |
| Document Type | Date | File | Size |
| Instructions | 31.03.2025 | PV041GEV01_Rev01.pdf | 282,44 KB |
