TECHNIQUE AND PERFORMANCE
The SPECIAL line dedicated to the sportiest VESPA enthusiasts is the concrete answer to those looking for the best in technology and performance.
The calibration developed by BITUBO technicians is aimed at obtaining the best response, in terms of driving precision and performance consistency, to the driving demands of the most sporty enthusiasts.

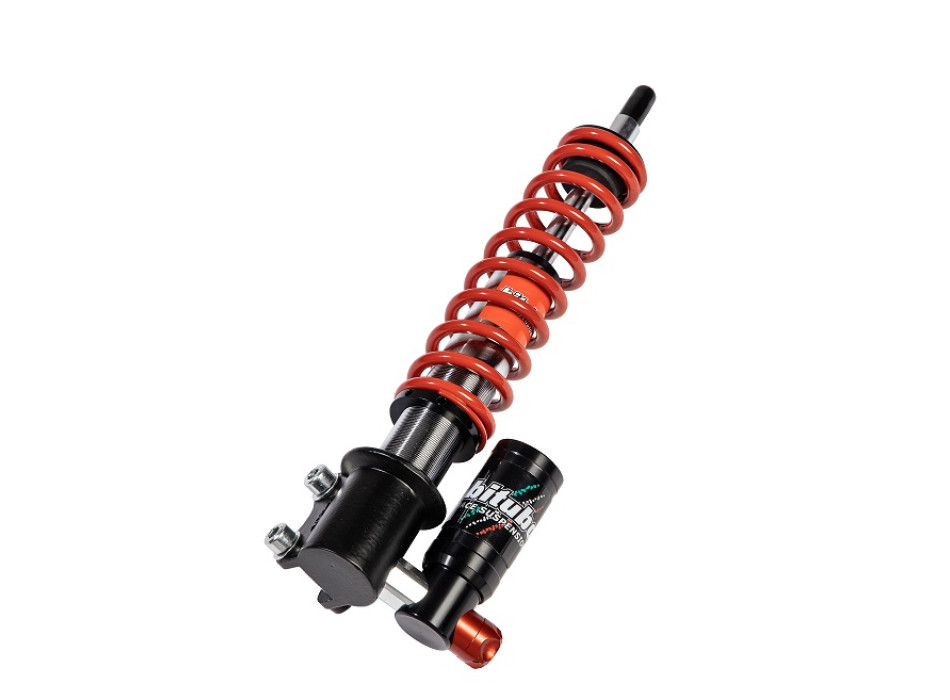

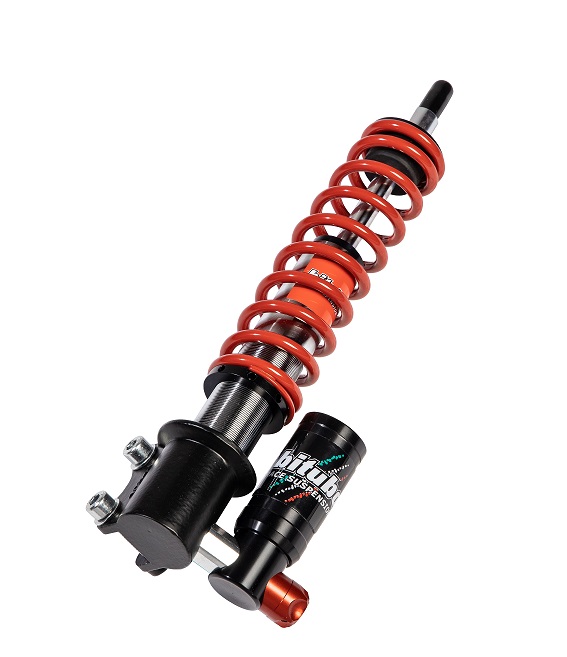

Thanks to the millimetric ring for the spring preload adjustment, and the compression brake adjustment, it is possible to further customize the suspension setting, according to your riding needs. GEV01 is the specific version for mounting on the front of some Vespa models, with a Ø 32 shock absorber body
TECHNICAL FEATURES
Gas pressurized shock absorbers (Nitrogen) with separate compensation tank, are the evolution of the experience gathered by BITUBO on the racetrack. The lower attachment foot and the compensation tank, made of aluminum alloy, have a special “satin black” paint, chosen not only for its modern and aggressive “look”, but for its characteristics of resistance to wear and oxidizing agents.
ADJUSTMENTS
| Spring preload | continuous |
| Compression | 24 clicks |
INCLUDED IN THE PACKAGE: Model-specific assembly instructions, spring preload adjustment tool
| Brands | Displacement | Model | Year | Type |
| PIAGGIO | 125 | VESPA PRIM 125 4T 3V IE ABS E5 | 2020-2021 | MD1A (MD1100) |
| PIAGGIO | 50 | VESPA PRIM. 4T 3V 25KM/H E4 | 2017-2019 | CA0200 |
| PIAGGIO | 125 | VESPA PRIM. 4T 3V E4 IGET ABS | 2016-2020 | MA1100 (MA1A) |
| PIAGGIO | 150 | VESPA PRIM. 4T 3V IGET ABS | 2016-2020 | MA1200 (MA1B) |
| PIAGGIO | 50 | VESPA PRIM. 4T 3V NO ABS E4 | 2017-2020 | CA0100 |
| PIAGGIO | 150 | VESPA PRIMAVERA 150 E5 | 2020-> | MD12M |
| PIAGGIO | 50 | VESPA PRIMAVERA 50 25KM/H E5 | 2020-2021 | CD020 |
| PIAGGIO | 50 | VESPA PRIMAVERA 50 4T 3V E5 | 2020-2021 | CD01 |
| PIAGGIO | 125 | VESPA SPRINT 125 3V IE ABS E5 | 2020-2020 | MD1A (MD1101) |
| PIAGGIO | 50 | VESPA SPRINT 4T 3V 25KM/H E4 | 2017-2020 | CA0201 |
| PIAGGIO | 50 | VESPA SPRINT 4T 3V E4 | 2017-2020 | CA0101 |
| PIAGGIO | 125 | VESPA SPRINT IGET 4T 3V ABS | 2016-2020 | MA1300 (MA1A) |
| PIAGGIO | 150 | VESPA SPRINT S. 4T 3V IGET ABS | 2016-2020 | MA1400 (MA1B) |
| Document Type | Date | File | Size |
| Instructions | 31.03.2025 | PV046GEV01_Rev00.pdf | 237,92 KB |
